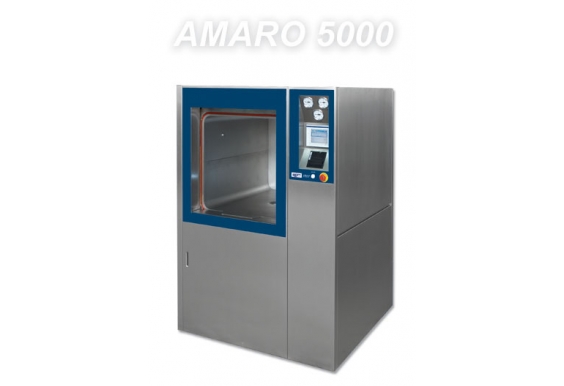

Tiệt trùng hơi nước AJC 343L, 490L

Tiệt trùng hơi nước AJC 343L, 490L

MSP: AMARO 5000
Xuất xứ: A.J.COSTA ( Bồ Đào Nha)
Ứng dụng:
Features
Integral steam jacket
Easy to perceive and handle touch screen (Man-Machine interface)
Computerized command of cycles
Validated cycles for typical hospitalary loads
Counting of sterilizations performed
Real-time printing of cycle parameters
Safety-stop system for door movement in case of obstruction
Safety system against door opening in mid-cycle in case of power failure
Incorporated energy and water saving systems
Extended listing with errors associated to eventual cycle-specific failures
Chamber electrolytic polishing
Chamber and jacket in AISI 316 and AISI 304 stainless steel respectively
Equipment fully built in stainless steel, free of ferrous materials
Optionally supplied with 1 or 2 sliding doors
Accurate pressure and temperature sensors

ACCESSORIES
Exterior loading car
Rolling load platform
Load baskets
Silent air compressor
Water softner

Cấu hình kỹ thuật

External network connections
Network Features
ELECTRIC 3 ~ + N + G 400 V / 230 V 50 Hz 2,5 kW
WATER Maximum pressure 6 Bar
Minimum pressure 3 Bar
Connection 3/4” BSP
STEAM Maximum pressure 3,5 Bar
Minimum pressure 3 Bar
onnection 3/4” BSP
PNEUMATIC Maximum pressure 7,5 Bar
Minimum pressure 4 Bar
3/8” male connection
DRAIN Material resistant to 100 ºC
connection 2” BSP

Amaro 5000, automatic vertical sliding doors (04 to 12 STU)
Model

Chamber dimensions
(LxHxP)
Volume      Overall dimensions
(LxHxP)
cm liters cm
70.70.70           70x70x70   343     113x195x106
70.70.100 70x70x100 490   113x195x136
