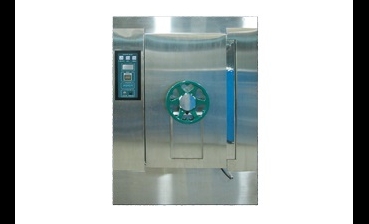

Tiệt trùng hơi nước AJC 633L, 780L, 931L

Features
Integral steam jacket
Easy to perceive and handle touch screen (Man-Machine interface)
Computerized command of cycles
Validated cycles for typical hospitalary loads
Counting of sterilizations performed
Real-time printing of cycle parameters
Safety-stop system for door movement in case of obstruction
Safety system against door opening in mid-cycle in case of power failure
Incorporated energy and water saving systems
Extended listing with errors associated to eventual cycle-specific failures
Chamber electrolytic polishing
Chamber and jacket in AISI 316 and AISI 304 stainless steel respectively
Equipment fully built in stainless steel, free of ferrous materials
Optionally supplied with 1 or 2 sliding doors
Accurate pressure and temperature sensors


External network connections Network Features ELECTRIC 3 ~ + N + G 400 V / 230 V 50 Hz 2,5 kW WATER Maximum pressure 6 Bar Minimum pressure 3 Bar Connection 3/4” BSP STEAM Maximum pressure 3,5 Bar Minimum pressure 3 Bar Connection 3/4” BSP PNEUMATIC Maximum pressure 7,5 Bar Minimum pressure 4 Bar 3/8” male connection DRAIN Material resistant to 100 ºC connection 2” BSP



Amaro 5000, automatic vertical sliding doors (04 to 12 STU)
Model	Chamber dimensions (LxHxP)	Volume	Overall dimensions (LxHxP)
	cm	liters	cm
70.70.130	70x70x130	633	113x195x161
70.70.160	70x70x160	780	113x195x186
70.70.190	70x70x190	931	113x195x226
